Specification control
Profile, dimensions, material and quantity are recorded before sampling or production proceeds. Include the drawing revision and any approved part reference.
Bearing and alignment
Wear Rings, Guide Tape & Wear Strip for Hydraulic Cylinders
Wear rings and strips in fabric reinforced phenolic resin, filled PTFE and fabric reinforced polyester resin. POM and PEEK parts custom machined to drawing. For distributors and industrial purchasing teams sourcing to a defined specification.
- WR · GST · WST
- Three core material families
- POM & PEEK custom machining

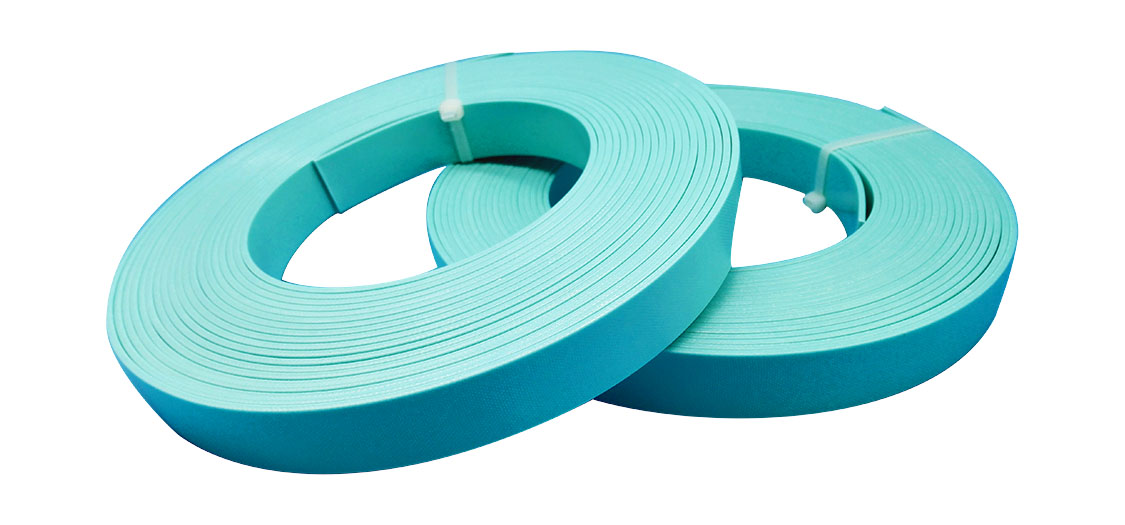

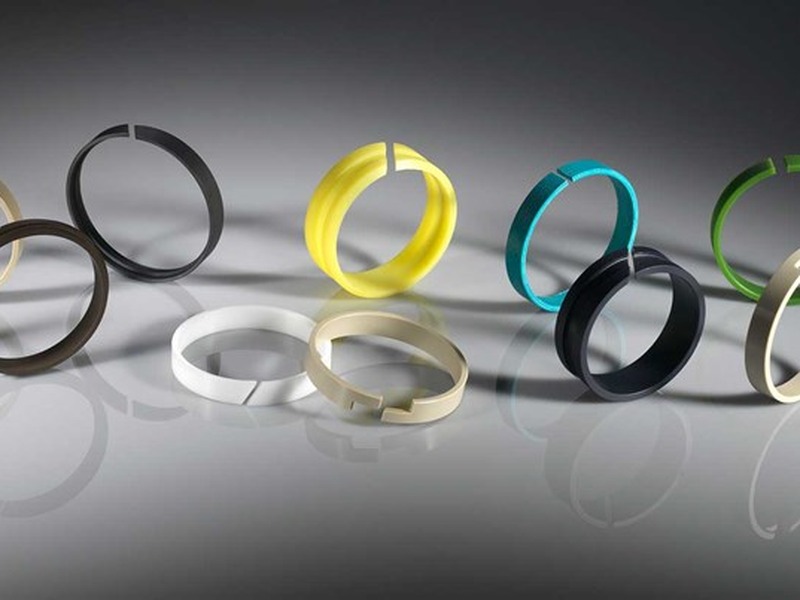

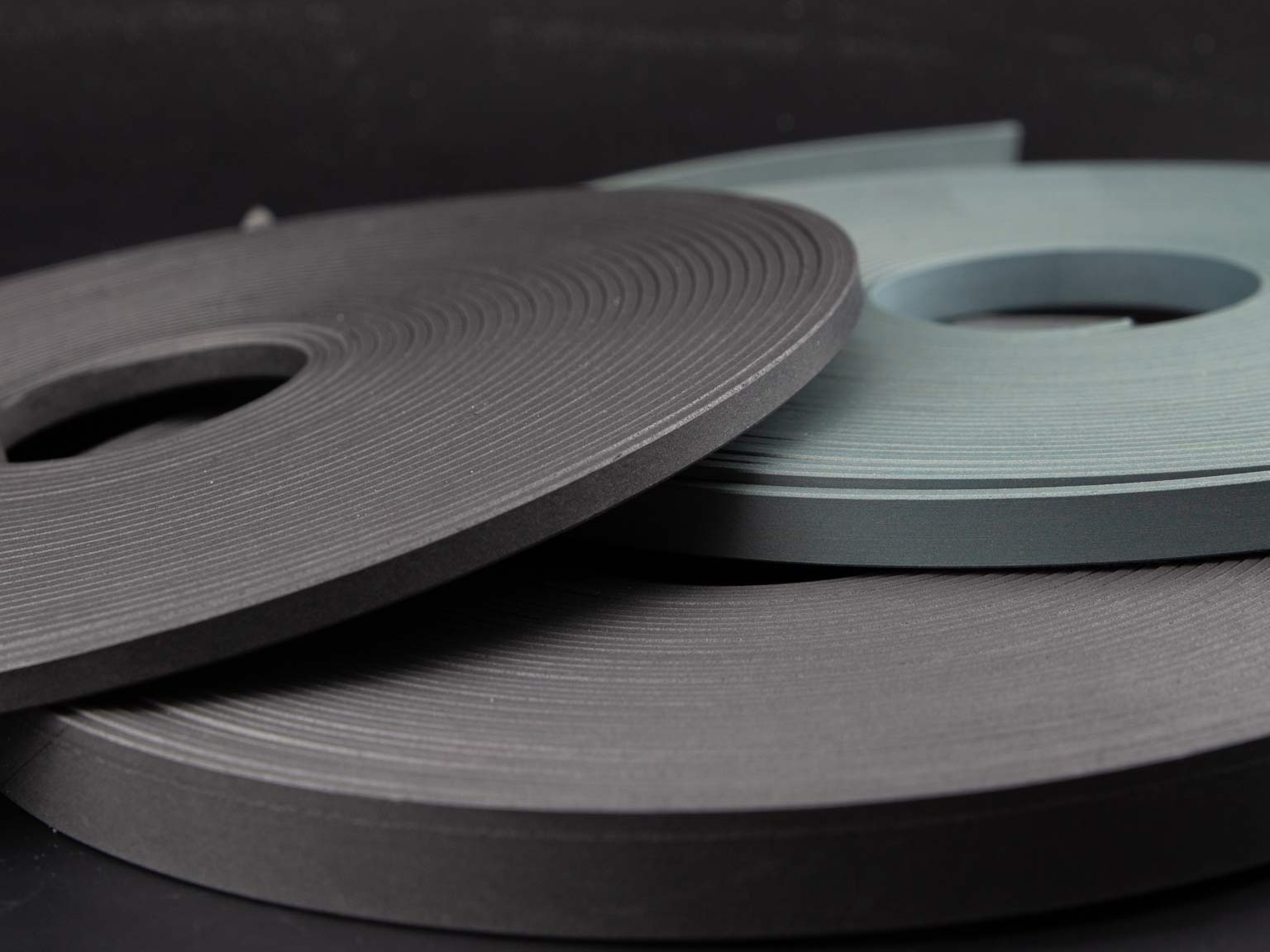

Wear rings, guide tape & wear strip
WR, GST and WST
Choose a profile to access product details. For a quotation, provide your part reference or controlled drawing with the material specification and quantity.
Our main material range
Material supply range
We mainly work with fabric reinforced phenolic resin, filled PTFE and fabric reinforced polyester resin. POM and PEEK are also available for custom machining to your requirements.
| Material | Supply scope | Specification reference |
|---|---|---|
| Fabric reinforced phenolic resin | Main supply material | Specify the required grade, reinforcement specification and drawing reference. |
| Filled PTFE | Main supply material | Identify the filler type, content or approved compound reference where specified. |
| Fabric reinforced polyester resin | Main supply material · WST | WST wear strip; regular cross-sections are listed on the product page. |
| POM | Custom machining | Drawing-based parts; specify grade, critical dimensions and tolerances. |
| PEEK | Custom machining | Drawing-based parts; specify grade, critical dimensions and tolerances. |
Dimensions and machining
Supply specifications
Quote by product reference or drawing. State tolerances explicitly; nominal dimensions alone do not define the acceptance specification.
| Product form | Dimensional reference | Order details |
|---|---|---|
| Wear rings | Finished ring and groove dimensions; section drawing | Material grade, tolerances, cut configuration and quantity |
| Guide tape / wear strip | Width × thickness; cut length or installed diameter | Material grade, end gap, supply format and quantity |
| Custom-machined POM / PEEK | Controlled part drawing and revision | Specified grade, critical tolerances, quantity and acceptance requirements |
Order and quality control
Define the specification. Agree the acceptance criteria.
Inspection and documentation requirements belong in the purchase specification, alongside dimensions and material.
Inspection scope
Dimensional and visual checks follow the agreed specification. Define critical dimensions, tolerances and any additional inspection requirements with the inquiry.
Documentation
Request inspection reports, material statements or traceability information with the quotation. Document availability and scope are confirmed against the order.
Repeat purchasing
Use the confirmed specification for repeat orders. Quote your approved part reference and drawing revision, with any changes identified.
Inspection against the agreed drawing
Auter uses optical profile projector and height-gauge equipment for dimensional checks. Identify the dimensions and tolerances requiring inspection in your drawing or order specification.
For packaging, part labels, sample approval and delivery schedules, include your requirements with the RFQ so they can be addressed in the quotation.
View our quality process →Guide elements FAQ
Purchasing and specification questions
Which material information should accompany a purchase specification?
State the material family and required grade. For filled PTFE, include the filler type and content or approved compound reference where specified. For reinforced resins, include any controlled material specification.
Can POM and PEEK parts be custom machined?
Yes. Submit a controlled drawing showing the material grade, dimensions, tolerances and revision, together with quantity and acceptance requirements.
Where are regular WST sizes listed?
The WST product page lists regular width × thickness cross-sections. Include cut length or installed diameter, end-gap requirements and quantity with the inquiry.
Can inspection and material documents be included?
State the required reports, material statements and traceability requirements before order confirmation. Availability and scope are agreed for the specific order.
Wear rings, guide tape & wear strip inquiry
Send your wear ring, guide tape or wear strip requirement.
Send your part list or controlled drawing with the material specification, order quantity and required delivery date. Identify any sample approval, inspection, packaging or labelling requirements.
- Part reference, drawing revision and critical dimensions
- Material grade or approved compound specification
- Order quantity, repeat demand and requested delivery
- Inspection documents, packaging and part labels
